By: Team Notably      Since: Feb 2020      Licence: MIT

1. Setting up

Refer to the guide here.

2. Design

The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the Using PlantUML guide to learn how to create and edit diagrams.

2.1. Architecture

ArchitectureDiagram
Figure 1. Architecture Diagram

2.1.1. Design pattern and data flow

The App is built following the Model-View-Controller design pattern.

In addition, the App’s data flow is unidirectional. That is, all user interactions in View will trigger an appropriate handler in Logic, which in turn updates Model and Storage.

Any data/state changes in Model will then propagate back to View automatically through JavaFX’s Property and Binding. In other words, the Observer design pattern is employed; Model is the observable while View is the observer.

In short, the App’s data flow can be summarized as:
View → Logic → Model + Storage → View

2.1.2. Architecture-level components

Overall, the App consists of five main components:

  • View: View of the App.

  • Logic: Business logic of the App.

  • Model: In-memory representation of the App’s data/state.

  • Storage: Reads data from, and writes data to, the hard disk.

  • Commons: A collection of classes used by multiple other components.

The first four components, namely View, Logic, Model and Storage:

  • Defines its API in an interface with the same name as the itself, e.g. Logic.java

  • Exposes its functionality using a {Component Name}Manager class, e.g. LogicManager.java

The following classes from Commons plays an important role at the architecture level:

  • LogsCenter : Used by many classes to write log messages to the App’s log file.

  • Compiler : Used mainly by the View to compile Markdown to HTML for displaying notes.

2.1.3. How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command new -t Notably.

ArchitectureSequenceDiagram
Figure 2. Component interactions for the new -t Notably command

2.2. View

UiClassDiagram
Figure 3. Structure of the View Component

API : View.java

The View consists of a MainWindow that is made up of parts e.g.CommandBox, SuggestionsList, SideBarTree, HelpModal, BlockContent etc. All these, including the MainWindow, inherit from the abstract ViewPart class.

The View component uses JavaFx framework. The layout of these View parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The View component,

  • Executes user commands using the Logic component.

  • Listens for changes to Model data so that the View can be updated with the modified data.

2.3. Logic

LogicArchitectureDiagram
Figure 4. Architecture of Logic

API : Logic.java

Logic consists of 3 subcomponents:

2.3.1. NotablyParser component

LogicClassDiagram
Figure 5. Class Diagram of the Logic Component

  1. Logic uses the NotablyParser class to parse the user command.

  2. This results in a List<Command> object which is executed by the LogicManager.

  3. The command execution can affect the Model (e.g. adding a Note).

  4. The updated model/data structure will automatically be reflected on to the View.

Given below is the Sequence Diagram for interactions within the Logic component for the execute("delte -t cs2103") API call.

DeleteSequenceDiagram
Figure 6. Interactions Inside the Logic Component for the delte -t cs2103 Command
The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

2.3.2. SuggestionEngine

SuggestionClassDiagram
Figure 7. Class Diagram of the Suggestion Engine Component

API : SuggestionEngine.java

SuggestionEngine gives users the meaning of the command they input and a list of notes suggestions that they want to open, delete, or search.

  1. Logic uses the SuggestionEngine class, to handle the user input.

  2. According to the command the user inputs, SuggestionEngine will create a XYZSuggestionArgHandler or ABCSuggestionHandler object which implements SuggestionArgHandler and SuggestionHandler interface respectively. XYZSuggestionArgHandler are for commands that require argument parsing, i.e. open, delete, search, new, whereas ABCSuggestionHandler are for commands that do not require argument parsing, i.e. edit, exit, help.

  3. If SuggestionArgHandler object is created: the responseText in the Model will be updated. This case will also result in the creation of XYZSuggestionGenerator object (except for new command) which implements SuggestionGenerator interface. XYZSuggestionGenerator is then executed by the SuggestionEngine.

  4. If SuggestionHandler object is created: the responseText in the Model will be updated.

  5. The Model could be affected in 2 ways:

    • Update responseText of the Model (by the SuggestionHandler and SuggestionArgHandler): for instance, the input open / will set the responseText in the Model as "Open a note".

    • Store a list of SuggestionItem in the Model (by the SuggestionGenerator).

  6. The UI will then be able to retrieve the responseText and list of SuggestionItem from the Model to be displayed to the user.

Given below is the Sequence Diagram for interactions within the Logic and Suggestion component for the input opne /a.

SuggestionSequenceDiagram
Figure 8. Interactions Inside the Logic and Suggestion Component for the input opne /a
The lifeline for OpenSuggestionArgHandler should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

2.3.3. CorrectionEngine

CorrectionEngineClassDiagram
Figure 9. Class Diagram of the CorrectionEngine Component

The CorrectionEngine component revolves around two API s, namely:

Given below is the Sequence Diagram for interactions within the StringCorrectionEngine (one concrete implementation of CorrectionEngine) component for the correct("uncorrected") API call.

StringCorrectionEngineSequenceDiagram
Figure 10. Interactions inside the StringCorrectionEngine component for the correct("uncorrected") call

2.4. Model

ModelClassDiagram
Figure 11. Structure of the Model Component

API : Model.java

The Model,

  • stores and manipulates the BlockTree data that represents a tree of Blocks, through BlockModel

  • stores and manipulates a list of suggestions based on the user’s input, through SuggestionModel

  • stores the current state of the View, through ViewStateModel

    • stores the command input given by the user, through CommandInputModel

    • stores the state of the help modal being open, through HelpFlagModel

    • stores the state of the current block’s edit modal being open, through BlockEditFlagModel

  • stores UserPref data that represents the user’s preferences, through UserPrefModel

2.4.1. BlockModel component

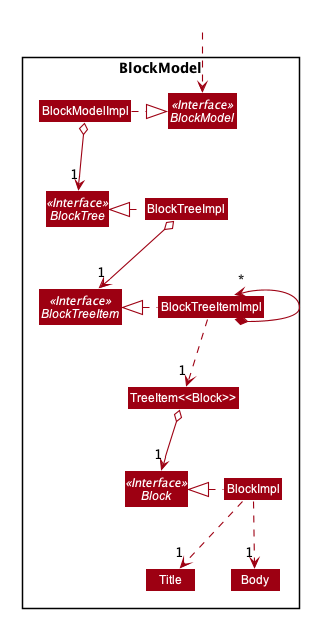

BlockModelClassDiagram
Figure 12. Structure of the Model Component

API : BlockModel.java

The BlockModel

  • stores and directly manipulates the BlockTree

    • contains a single BlockTreeItem as the root; the tree is built by adding chilren BlockTreeItems to the root

      • each BlockTreeItem stores the reference to its parent and children BlockTreeItems, and its own content, through TreeItem<Block>

        • stores its content, through Block

          • contains the Title and Body content

2.5. Storage

StorageClassDiagram
Figure 13. Structure of the Storage Component

API : Storage.java

The Storage component,

  • can save UserPref objects in JSON format and read it back.

  • can save Notably’s BlockModel data in JSON format and read it back.

    • stores the BlockTree and also the path of the last opened Block

2.6. Commons

Classes used by multiple components are in the com.notably.commons package.

2.7. Compiler

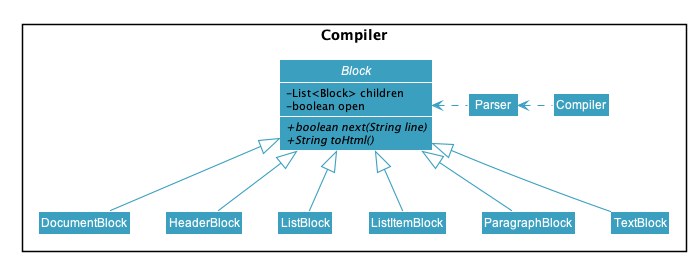

CompilerClassDiagram
Figure 14. Class Diagram of the Compiler Component

The Compiler component’s primary usage is to compile Markdown to HTML. Our Compiler component’s design is based off the parsing strategy explained in GitHub’s GFM Specification

Mainly, the Compiler component consists of the following classes:

The concrete implementations of the Block class consist of:

Two of Block's abstract methods are particularly important:

  • Block#next: This method should be implemented by each of Block's implementation in such a way that accepts a single String line and evolve the current Markdown Abstract Syntax Tree further. That way, each of Block's implementation only needs to care about processing the portion of the String line that is relevant to them, before delegating the rest to its children Blocks.

  • Block#toHtml: This method should be implemented by each of Block's implementation in such a way that it returns the HTML representation of the current Block. That way, each of Block's implementation only needs to care about generating its own HTML; the rest can be delegated to its children Blocks.

In short, our Compiler class will first call the Parser#parse method to generate a Markdown Abstract Syntax Tree. After that, the Compiler class will transform the returned Markdown Abstract Syntax Tree into HTML by calling the root DocumentBlock's toHtml method (which will in turn invoke each of its children’s toHtml method).

Given below is the Sequence Diagram for interactions within the Compiler component for the compile(markdown) API call.

CompilerSequenceDiagram
Figure 15. Interactions inside the Compiler component for the compile(markdown) call

2.8. Logging

We are using java.util.logging package for logging. The LogsCenter class is used to manage the logging levels and logging destinations.

  • The logging level can be controlled using the logLevel setting in the configuration file (See Section 2.9, “Configuration”)

  • The Logger for a class can be obtained using LogsCenter.getLogger(Class) which will log messages according to the specified logging level

  • Currently log messages are output through: Console and to a .log file.

Logging Levels

  • SEVERE : Critical problem detected which may possibly cause the termination of the application

  • WARNING : Can continue, but with caution

  • INFO : Information showing the noteworthy actions by the App

  • FINE : Details that is not usually noteworthy but may be useful in debugging e.g. print the actual list instead of just its size

2.9. Configuration

Certain properties of the application can be controlled (e.g user prefs file location, logging level) through the configuration file (default: config.json).

3. Implementation

This section describes the details on how features are implemented.

3.1. Correction Engine

3.1.1. Rationale

CorrectionEngine is needed to enable auto-correction of user inputs, to deliver as good typing experience as possible.

3.1.2. Current implementation

CorrectionEngine revolves around two API s, namely:

  • The CorrectionEngine interface, implemented by StringCorrectionEngine and AbsolutePathCorrectionEngine. Concrete implementations of CorrectionEngine are employed to correct an uncorrected user input.

  • The EditDistanceCalculator interface, implemented by LevenshteinDistanceCalculator. Concrete implementations of EditDistanceCalculator are employed to calculate the edit distance between two strings.

Two concrete implementations of the CorrectionEngine interface are, namely:

  • The StringCorrectionEngine class, which deals with the correction of plain strings.

  • The AbsolutePathCorrectionEngine class, which deals with the correction of absolute paths. The absolute paths here refer to the address of the notes (or blocks, as we call it) that exist in the App.

3.1.3. Design considerations

  1. CorrectionEngine is built as a standalone module that can be used by both SuggestionEngine and Parser. This decision is made so that code duplication in relation to auto-correction is minimal.

  2. Both CorrectionEngine and EditDistanceCalculator are implemented as interfaces, in an attempt to make the design of the CorrectionEngine component resilient to change. This design enables us to leverage on the strategy pattern to make our CorrectionEngine component more future-proof.

3.2. Suggestion Engine

3.2.1. Rationale

SuggestionEngine allows the users to traverse their notes conveniently, without having to remember the hierarchical structure of their notes. SuggestionEngine gives users the meaning of the command they input and a list of notes suggestions that they want to open, delete, or search.

3.2.2. Current implementation

SuggestionArgHandler SuggestionHandler

Purpose

Handles the arguments part of the user input and updates the responseText in the Model according to the user’s command input

Updates the responseText in the Model according to the user’s command input

Commands

open, delete, search, new

edit, exit, help

Suggestion Generation

Yes, by SuggestionGenerator (except for new command, since suggestions are generated based on the existing data in the app)

No

  1. Logic uses the SuggestionEngine class, to handle the user input.

  2. According to the command the user inputs, SuggestionEngine will create a XYZSuggestionArgHandler or ABCSuggestionHandler object which implements SuggestionArgHandler and SuggestionHandler interface respectively. XYZSuggestionArgHandler are for commands that require argument parsing, i.e. open, delete, search, new, whereas ABCSuggestionHandler are for commands that do not require argument parsing, i.e. edit, exit, help.

  3. If SuggestionArgHandler object is created: the responseText in the Model will be updated. This case will also result in the creation of XYZSuggestionGenerator object (except for new command) which implements SuggestionGenerator interface. XYZSuggestionGenerator is then executed by the SuggestionEngine.

  4. If SuggestionHandler object is created: the responseText in the Model will be updated.

  5. The Model could be affected in 2 ways:

    • Update responseText of the Model (by the SuggestionHandler and SuggestionArgHandler): for instance, the input open / will set the responseText in the Model as "Open a note".

    • Store a list of SuggestionItem in the Model (by the SuggestionGenerator).

  6. The UI will then be able to retrieve the responseText and list of SuggestionItem from the Model to be displayed to the user.

3.2.3. Design considerations

Aspect 1: Design with respect to the whole architecture

  1. SuggestionEngine is segregated from Parser in order to differentiate the logic when the user has finished typing and pressed Enter (which will be handled by Parser) in contrast to when the user presses the keyboard down button and Enter to take in the suggestion item.

  2. In order to keep the App’s data flow unidirectional, SuggestionEngine will update the responseText (which tells the user the meaning of his command) and the list of SuggestionItem into the Model. Thus, by not showing the responseText and suggestions immediately to the UI, SuggestionEngine will not interfere with the View functionality.

  3. SuggestionArgHandler, SuggestionHandler, SuggestionGenerator, SuggestionItem, and SuggestionModel are implemented as interfaces, in an attempt to make the design of the SuggestionEngine component resilient to change.

Aspect 2: Implementation of suggestions generation

  • Alternative 1: Have a SuggestionCommandParser interface and SuggestionCommand interface to parse each of the command, update responseText in the Model, and give suggestions.

    • Pros: This provides a consistency for all the commands, where each command has a XYZSuggestionCommandParser and XYZSuggestionCommand class.

    • Cons: The SuggestionCommandParsers of the commands that do not require parsing of user input (edit, exit, help) end up passing a userInput argument that is not being used anywhere, which makes this design unintuitive. Moreover, since the updating of the responseText in the Model can be done in each SuggestionCommandParser, the SuggestionCommand`s of `edit, exit, and help end up to be redundant.

  • Alternative 2 (current choice): Create 2 separate interface to handle commands with input parsing and those without, and name it as a SuggestionArgHandler and SuggestionHandler respectively.

    • Pros: This solves the cons discussed in Alternative 1, as this design gives a separate implementation for the commands with input parsing and those without. It does not force the Handler to parse the user input when there is no need to. The naming Handler also does not restrict the functionality of the interface and classes to just parse an input, but allows for a flexibility in executing other functionality such as updating the responseText in the Model.

3.3. Correction Engine

3.3.1. Rationale

CorrectionEngine is needed to enable auto-correction of user inputs, to deliver as good typing experience as possible.

3.3.2. Current implementation

The CorrectionEngine component revolves around two API s, namely:

Two concrete implementations of the CorrectionEngine interface are, namely:

  • The StringCorrectionEngine class, which deals with the correction of plain strings.

  • The AbsolutePathCorrectionEngine class, which deals with the correction of absolute paths. The absolute paths here refer to the address of the notes (or blocks, as we call it) that exist in the App.

3.3.3. Design considerations

  1. CorrectionEngine is built as a standalone module that can be used by both SuggestionEngine and Parser. This decision is made so that code duplication in relation to auto-correction is minimal.

  2. Both CorrectionEngine and EditDistanceCalculator are implemented as interfaces, in an attempt to make the design of the CorrectionEngine component resilient to change. This design enables us to leverage on the strategy pattern to make our CorrectionEngine component more future-proof.

3.4. Paths

Given below is the implementation detail of the Path feature and some alternative design considerations.

3.4.1. Current Implementation

The Path interface represents the location of a Block in our data structure. A path can exist in 2 forms namely :

  1. AbsolutePath

  2. RelativePath

An AbsolutePath is a path that takes its reference from the root / block.
While a RelativePath takes it reference from the current note that is opened.

Currently the user is given the freedom to provide any of the 2 forms when using the open, delete command.
Given the following DataStructure below.

PathExample1
Figure 16. DataStructure example to illustrate Path

Using AbsolutePath open /CS2101 and using RelativePath open ../CS2101 would yield the same result.

3.4.2. Design Consideration

Aspect: Implementation of Path :

  • Alternative 1(Current choice): Have 2 separate class implementing Path, which is AbsolutePath and RelativePath.

    • Pros: More readable and OOP, each class can have their individual validity REGEX.

  • Alternative 2: Implement a single class PathImpl and have a boolean flag isAbsolute to tell if its a Relative or Absolute path.

Aspect: Logical equivalence of RelativePath :

  • Alternative 1(Current choice): Relative path CS2103/../note1 would be equivalent to note1.

    • Pros: More intuitive for the user and developer, making it easier to integrate paths with other features.

  • Alternative 2: Relative path CS2103/../note1 would not be logically equivalent to note1.

3.5. Tree Data Structure

Notably aims to provide end user a neat and well-organized workspace to store their notes. This is done by creating a tree structure; allowing users to create folder-like paths to organize their notes and group them into categories to their own liking.

3.5.1. Rationale

While this can be done with a linear data structure (a simple list), a linear list of notes would require more work to establish the relationship between groups of notes. A tree data structure supports this better, giving a clearer distinction while also establishing a form of hierarchy (as seen in the design example below).

On top of that, observability must be ensured so that the UI can update with any changes that happen on the tree (and its nodes) and also the data within each node.

TreeDataStructureDesign
Figure 17. Tree Data Structure Design Example

3.5.2. Current Implementation

A custom tree data structure that supports observability has been implemented. As seen here, the BlockModel is the entry of point of manipulating the data tree. The tree (referred to as BlockTree) is made up of tree nodes (referred to as BlockTreeItem). The tree is observable such that if any change occurs on any of the tree’s nodes, the change event will bubble upwards to the root node. Hence, the root node serves as the entry point for the BlockTree.

To achieve this design, a BlockTreeItem needs to contain 3 primary components:

  • an Observable reference to its parent

  • an ObservableList of its children

  • User’s note data (referred to as Block data) consisting of:

    • Title of the note

    • Body content of the note (optional)

After multiple designs, the current implementation now has BlockTreeItem using an underlying TreeItem<Block> to handle the general behaviour of a tree node.

When manipulating the BlockTree, the execution of any operation is always split in this order:

  1. Get the currentlyOpenPath from the BlockModel

  2. BlockModel carries out the command required based on that currentlyOpenPath

An example of an operation is new -t CS2103T. To execute this, the following sequence occurs:

  1. NewCommandParser creates the Block that has the title 'CS2103T' and a default empty body.

    • The Title and Body objects are created as well

  2. NewCommand then calls the Model and in turn, the BlockModel to add this Block to the BlockTree

  3. BlockModel first obtains the currentlyOpenPath to execute the operation on, i.e in this case, to add the new Block on the path

  4. BlockModel calls BlockTree to add the Block to the AbsolutePath obtained from BlockModel

  5. BlockTree creates a BlockTreeItem using the Block parsed earlier.

  6. Subsequently, the underlying TreeItem<Block> is created and the BlockTreeItem is then added to the BlockTree.

Below is a sequence diagram that demonstrates this example

TreeDataStructureSequenceDiagram
Figure 18. Tree Data Structure SequenceDiagram

3.5.3. Design Considerations

Aspect: Using JavaFX’s TreeItem<T> vs implementing a BlockTreeItem from scratch

Current choice: Using JavaFX’s TreeItem<T>

Pros:

  • seamless integration with JavaFX’s TreeView which is used in Notably’s sidebar to show the notes in a traditional file-browser-like manner

  • TreeItem<T> has the requirements of BlockTreeItem’s design already implemented to a usable extent

  • conveniently handles underlying event handling required for BlockTree to be observable

Cons:

  • Implementation still requires wrapping and unwrapping of underlying TreeItem<T> to work with TreeView

Aspect: BlockTreeItem vs Folders to represent path structure

Current choice: BlockTreeItem

Pros:

  • No need for an additional class. Having a separate folder object would also require a separate UI View since folders should not contain any block data.

Cons:

  • Somewhat unconventional design. User might be unfamiliar with the intention on first use, without proper explanation

Aspect: Root should also be a BlockTreeItem

Pros:

  • Seamless transition to JSON storage

Cons:

  • Need to add constraint to ensure that the root BlockTreeItem does not contain any Body and is also unmodifiable

3.6. Compiler

3.6.1. Rationale

Compiler is needed to enable compilation of Markdown to HTML. By having an Markdown to HTML compiler, we can allow user to format their notes in Markdown, which enhances their note-editing experience tremendously.

3.6.2. Current implementation

The implementation of Compiler is highly inspired by the parsing strategy explained in GitHub’s GFM Specification. Please read more from the specification for a more comprehensive explanation.

3.6.3. Design considerations

Generally speaking, compilers usually consist of several main components, namely a tokenizer, a parser, and a generator. However, this is not the case in our design of the Compiler component:

  1. Leveraging on the fact that Markdown’s syntax is not overly complicated, we decided not to fully adhere to the usual compiler design. Instead, we merged the tokenizer and parser section into our Parser class. This Parser class thus deals converting raw Markdown string into a Markdown Abstract Syntax Tree.

  2. In addition, we opted to not build a standalone generator component. Instead, we make it such that each node in our Markdown Abstract Syntax Tree supports a toHtml method, which returns the HTML representation of the tree starting from itself as a node. This way, we can leverage on OOP’s polymorphism to generate the HTML string out of our Markdown Abstract Syntax Tree a lot easier.

4. Documentation

Refer to the guide here.

5. Testing

Refer to the guide here.

6. Dev Ops

Refer to the guide here.

Appendix A: Product Scope

Target user profile:

  • Students that has a need to take notes and organize them into categories

  • prefer desktop apps over other types

  • can type fast

  • prefers typing over mouse input

  • is reasonably comfortable using CLI apps

Value proposition: Take and manage notes faster than a typical mouse/GUI driven app

Appendix B: User Stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​

* * *

student

traverse my notes in a file system-like manner

so that I can skim through my sea of notes and drafts without any problem.

* * *

student

search my notes by their content

I won’t have to remember the exact location and title of notes.

* * *

student

reliably type search commands(not error-prone)

focus on searching my notes rather than ensuring my commands are exact

* *

student

can quickly make changes to a note

so that I can update my notes with new information accurately while in class.

*

impatient student

alias a path to a folder

do not have to memorise and type out the entire file structure when accessing a nested note

Appendix C: Use Cases

(For all use cases below, the System is the Notably and the Actor is the user, unless specified otherwise)

Use case: Search notes using the Auto-suggestion feature

MSS

  1. User types in a keyword of a note’s content that he wants to open.

  2. Notably lists out the relevant search results, with the most relevant at the top of the list (based on the keyword’s number of occurrences in the note).

  3. User chooses one of the suggested notes.

  4. Notably opens the chosen note.

    Use case ends.

Extensions

  • 2a. No suggestion is being generated.

    • 2a1. Notably displays a response text, indicating that the user is trying to search through all of the notes using that particular keyword.

    • 2a2. Since the empty suggestion conveys that the keyword cannot be found, the user enters a new data.

Steps 2a1-2a2 are repeated until the data entered is correct. Use case resumes from Step 3.

Use case: Open/ Delete notes using the Auto-suggestion feature

MSS

  1. User types in an incomplete path or title of a note.

  2. Notably lists out suggestions of notes.

  3. User chooses one of the suggested notes.

  4. Notably opens/ deletes the chosen note.

    Use case ends.

Extensions

  • 1a. Path or title contains invalid character(s) ( symbols - or `)

    • 1a1. Notably displays a response text, indicating that the path or title is invalid.

    • 1a2. User enters a new data.

Steps 1a1-1a2 are repeated until the data entered is correct. Use case resumes from Step 2.

  • 1b. Path or title does not exist

    • 1b1. Notably displays a response text, indicating that the user is trying to open/ delete the note with the particular path or title that the user inputs.

    • 1b2. Notably does not generate any suggestions, which means the note cannot be found.

    • 1b3. User enters a new data.

Steps 1b1-1b3 are repeated until the data entered is correct. Use case resumes from Step 2.

Use case: Quickly Edit notes using the Edit Modal

MSS

  1. User invokes edit command by typing "edit" in the command box.

  2. Notably immediately opens an edit modal for the currently open note to allow for editing.

  3. User presses a keyboard shortcut ("ESC").

  4. Notably saves the user’s changes

  5. Notably closes the edit modal.

    Use case ends.

Extensions

  • 2a. User does not make any edits to the content of the note.

    Proceed to 3 first, then resume use case from 5.

  • 2b. User edits the content of the note.

    Use case continues from 3.

{More to be added}

Appendix D: Non Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.

  2. Should be able to hold up to 1000 notes without a noticeable sluggishness in performance for typical usage.

  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

Appendix E: Glossary

Mainstream OS

Windows, Linux, Unix, OS-X

Appendix F: Instructions for Manual Testing

Given below are instructions to test the app manually.

These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

F.1. Launch and Shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file
      Expected: Shows the GUI with a set of sample Notes. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

F.2. Add a new Note

  1. Adding a new Note to Notably without immediately opening that Note.

    1. Prerequisites: None of the child(ren) Note(s) of the currently opened Note has the same title as the new Note.
      Moreover, the currently opened Note must be the directory where the user wants to store the new Note.

    2. Command: new -t Notably
      Expected: a new Note titled "Notably" is added to the currently opened Note. The currently opened Note (current working directory) remains the same (highlighted at the sidebar).

  2. Adding a new Note to Notably and immediately opening that Note

    1. Prerequisites: None of the child(ren) Note(s) of the currently opened Note has the same title as the new Note.
      Moreover, the currently opened Note must be the directory where the user wants to store the new Note.

    2. Command: new -t Notably -o
      Expected: a new Note titled "Notably" is added to the currently opened Note. The currently opened Note (current working directory) is now the newly created "Notably" note (highlighted at the sidebar).

F.3. Open a Note

  1. Opening a Note in Notably.

    1. Prerequisites: The Note that is about to be opened must not be the root Note.

    2. Command: open [-t] Notably
      Expected: The Note titled "Notably" will be opened, with its content being displayed in the UI. The label "Notably" at the sidebar will also be highlighted, to indicate that the Note is being opened.

F.4. Delete a Note

  1. Deleting a Note in Notably.

    1. Prerequisites: The Note that is about to be deleted must not be the root Note.

    2. Command: delete [-t] Notably
      Expected: The Note titled "Notably" will be deleted. The other nested Notes inside the Note "Notably" will also be deleted.
      The Note "Notably" will no longer be visible in the sidebar.

F.5. Edit a Note

  1. Editing a Note in Notably.

    1. Prerequisites: The Note that is about to be edited must not be the root Note.
      The currently opened Note must be the Note that the user wants to edit.

    2. Command: edit
      Expected: An edit modal will pop up displaying your Note’s content in HTML format. The user can edit and save the Note by exiting that modal.

F.6. Search for a Note based on a keyword

  1. Searching for a note by using a keyword in Notably.

    1. Prerequisites: -

    2. Command: search [-s] hello
      Expected: A list of suggestions will be displayed, sorted based on the number of keyword matches, i.e. the note having the highest number of "hello" in its body will be put at the top of the suggestion list.

F.7. Correct command

  1. Correct command word in user input.

    1. Prerequisites: There should exist a Note titled Notably.

    2. Command: 'delete [-t] Notably'

    3. Expected: The command is interpreted as a delete command by Notably.

  2. Correct path in user input.

    1. Prerequisites: There should exist a Note titled Notably.

    2. Command: 'delete [-t] Notbly'

    3. Expected: The command is interpreted as a delete command by Notably.
